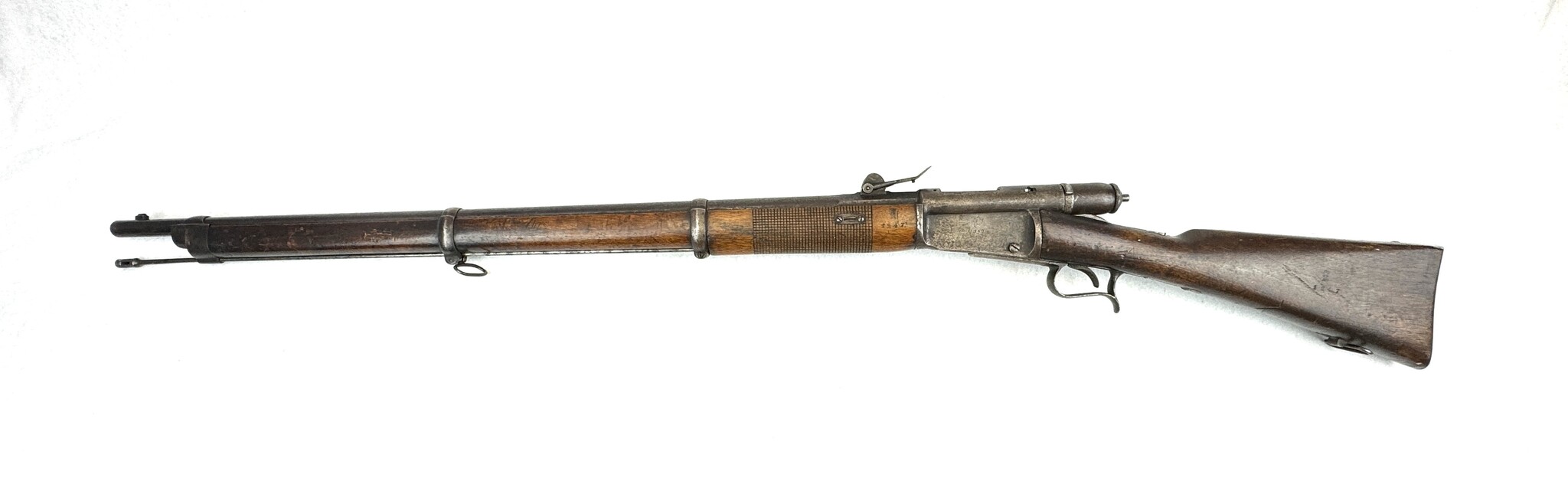

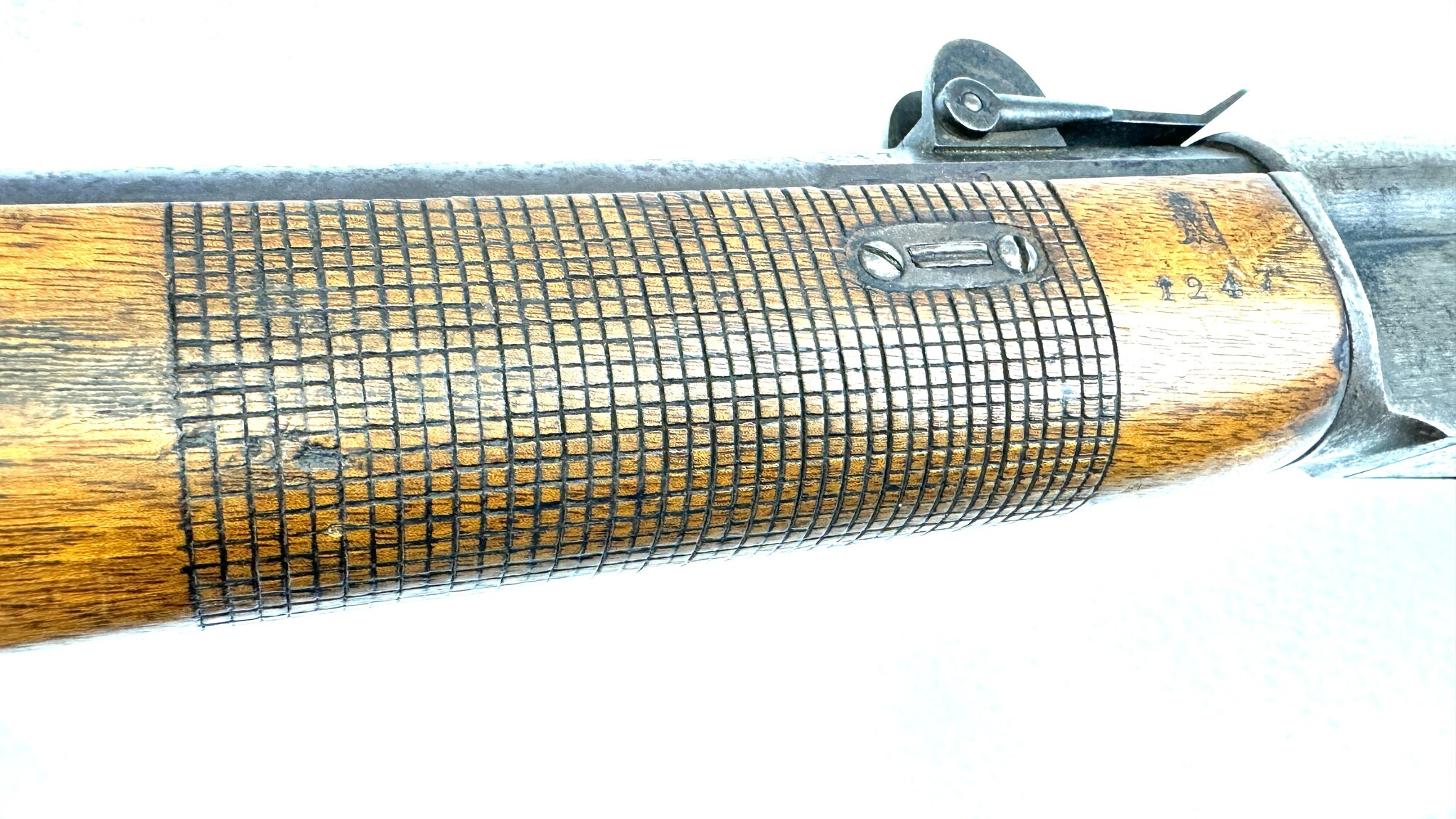

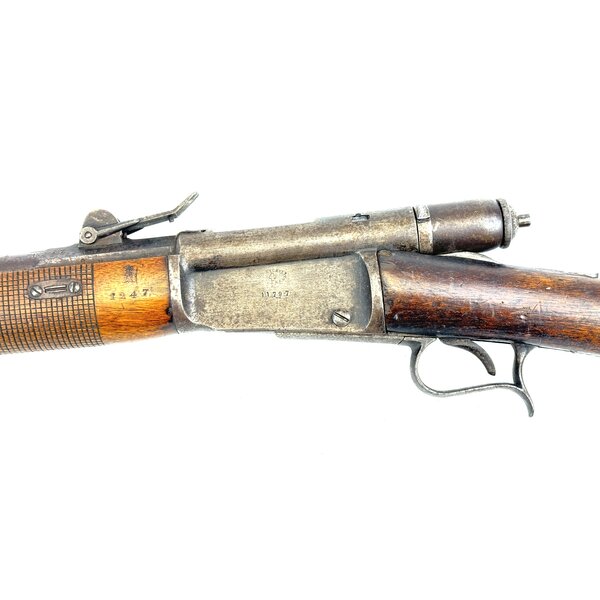

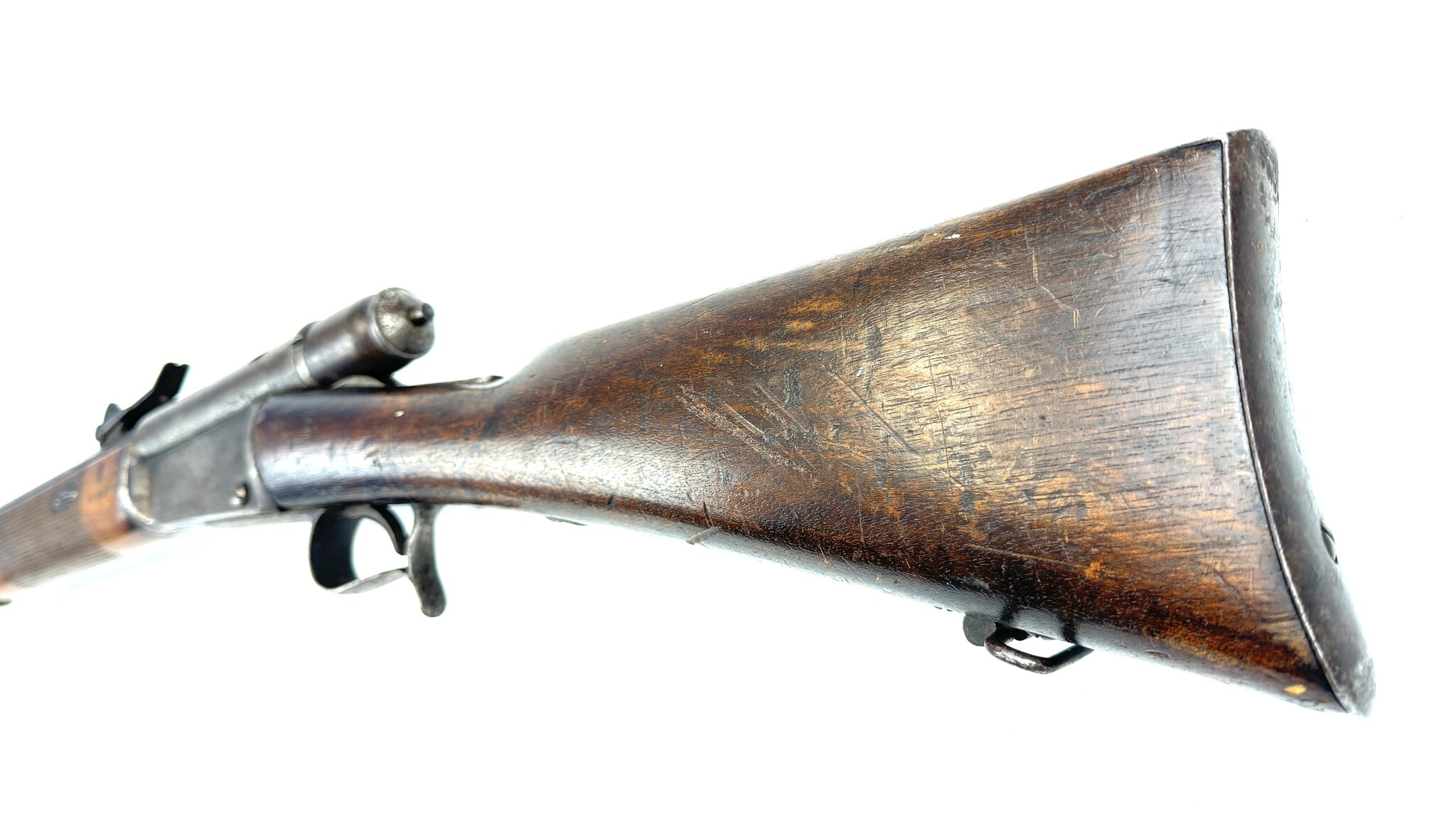

Vetterli Swiss 1869 Rifle 41 Cal Rimfire 10.4x38

The Vetterli rifles were a series of Swiss army service rifles in use from 1869 to 1889, when they were replaced with Schmidt–Rubin rifles. Modified Vetterlis were also used by the Italian Army.

The Swiss Vetterli rifles combined the American Winchester Model 1866's tubular magazine with a regular bolt featuring for the first time two opposed rear locking lugs. This novel type of bolt was a major improvement over the simpler Dreyse and Chassepot bolt actions. The Vetterli was also the first repeating bolt-action rifle to feature a self-cocking action, small caliber bore, and the first known standard issue of the intermediate round, which gave controllable handling and a large magazine capacity of 11 rounds, which was more than any other rifle of the time, predating the Lee–Metford.

Due to the Swiss Federal Council's early 1866 decision to equip the army with a breechloading repeating rifle, the Vetterli rifles were, at the time of their introduction, the most advanced military rifles in Europe. The Vetterli was the replacement for the Eidgenössischer Stutzer 1851, an Amsler-Milbank metallic cartridge conversion from previous Swiss muzzle-loading rifles.

Repetiergewehr Vetterli, Modell 1867

The model 1867 was the first iteration of Vetterli rifles. It was accepted into service in February 1868. The model 1867, like its successors, featured a 12-round under barrel tubular magazine and bolt action feed system. The primary distinguishing feature of the Model 1867 was the external hammer.

Repetiergewehr Vetterli, Modell 1868

Before the Model 1867 was put into full production, the rifle designer, Johann Friedrich Vetterli, updated the rifle by replacing the external hammer with an internal cocking bolt spring, rounded front barrel band and placing the cleaning rod on the left side of the rifle. It was discovered soon after that the cleaning rod in its current placement was easily damaged and was subsequently moved to the under-barrel position. The model was designated the Model 1869.
